Aperçu /Produits/Dispensateur d'engrais à propulsion autonome/3WPZ-1500A Manufacturer sale price agricultural tractor mounted self-propelled boom sprayer split medicine box

3WPZ-1500A Manufacturer sale price agricultural tractor mounted self-propelled boom sprayer split medicine box

1 meter
MOQ
3WPZ-1500A Manufacturer sale price agricultural tractor mounted self-propelled boom sprayer split medicine box
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Self-propelled sprayer
By wheel: 4WD
Rated Power (HP): 100HP
Usage: agricultural sprayer
Drive Type: 4 drive transmission
Certificate: CCC
Warranty: 1 Year
Key Selling Points: Paddy field fight medicine
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, Pressure vessel, Gearbox, Engine, Gear, PLC
Engine Brand: YUNNEI
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Other
Showroom Location: None
Prouduct model: 3WPZ-1500A
Wheel drive: 4*4
Dimension: 5370*2140*2530mm
Weight: 2200kg
wheel tread: 1800mm
Wheel base: 2350mm
Min land clearence: 1050mm
Tire size: 1180mm Pneumatic tire
Boom length: 1810mm
Medicine box volume: 1000L+500L
After-sales Service Provided: Video technical support
After Warranty Service: Video technical support
Local Service Location: None
Informations de base
Certification: CCC
Model Number: 3WPZ-1500A
Conditions de paiement et expédition
Description de produit

Product Description

The chassis is high, the ground clearance is large, and the passability is good. It is suitable for the growth cycle of not-so-far crops; the spray boom is long and the medicine box capacity is large, which replaces the manual 40 times; the four-wheel-drive four-steer, small and flexible turning radius, easy to work in the field .
1. The only high ground clearance three-point bearing drive axle independently developed, designed and produced;
2. The only complete machine manufacturer that independently develops, designs and produces core components;
3. The uniqueness of the spraying system. Only when there is health, there is everything, and when there is healthy life, there is a home;
4. Full hydraulic balance device spray system;
5. Special steel frame, electrophoresis coating of the whole vehicle;
6. High-density rubber tires;

7. The fourth generation MAITE4 has a special appearance, exquisite workmanship, and unique Chinese red
8. The side gear is adopted to allow users to work easily;
9. The front spray frame is supported by three points, which is safe and stable;
10. The material of the ceiling is polyethylene;
11. The 4 U-shapes on the car are all produced in molds by themselves;
12. Use single-layer steel wire return pipe and oil inlet pipe;
13. Adopt 495 large radiators;
14. The switch handle of the fertilizer spreader has a positioning function;
15. The frame of the whole vehicle adopts pure 100×50 cold drawn square tube;
16. Adopt large silencer

3WPZ-1500A Self-propelled sprayer

Prouduct model 3WPZ-1500A
Wheel drive 4×4
Dimension 5370×2140×2530mm
Weight 2200kg
wheel tread 1800mm
Wheel base 2350mm
Min land clearence 1050mm
Tire size 1180mm Pneumatic tire
Boom length 1810mm
Medicine box volume 1000L+500L
Steering Type Four-wheel steering
Engine Specification
Engine model YUNNEI
Engine type water cooled, vertical, 4 stroke and direct injection
Rated power(kw) 74
Rated revolution 2400r/min
Start way Electric start
Remarks Optional installation of fertilizer spreader, wheel track/medicine tank capacity/tire/spray bar can be customized.

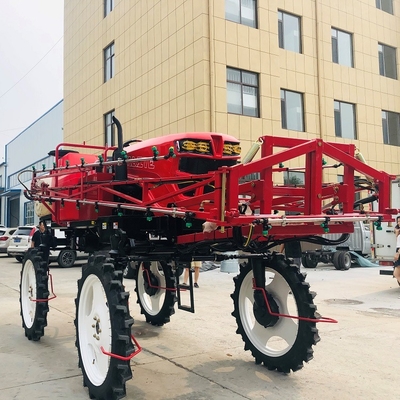

Product images
